DAQ-SECURE-01

Key Features

DAQ SECURE 01

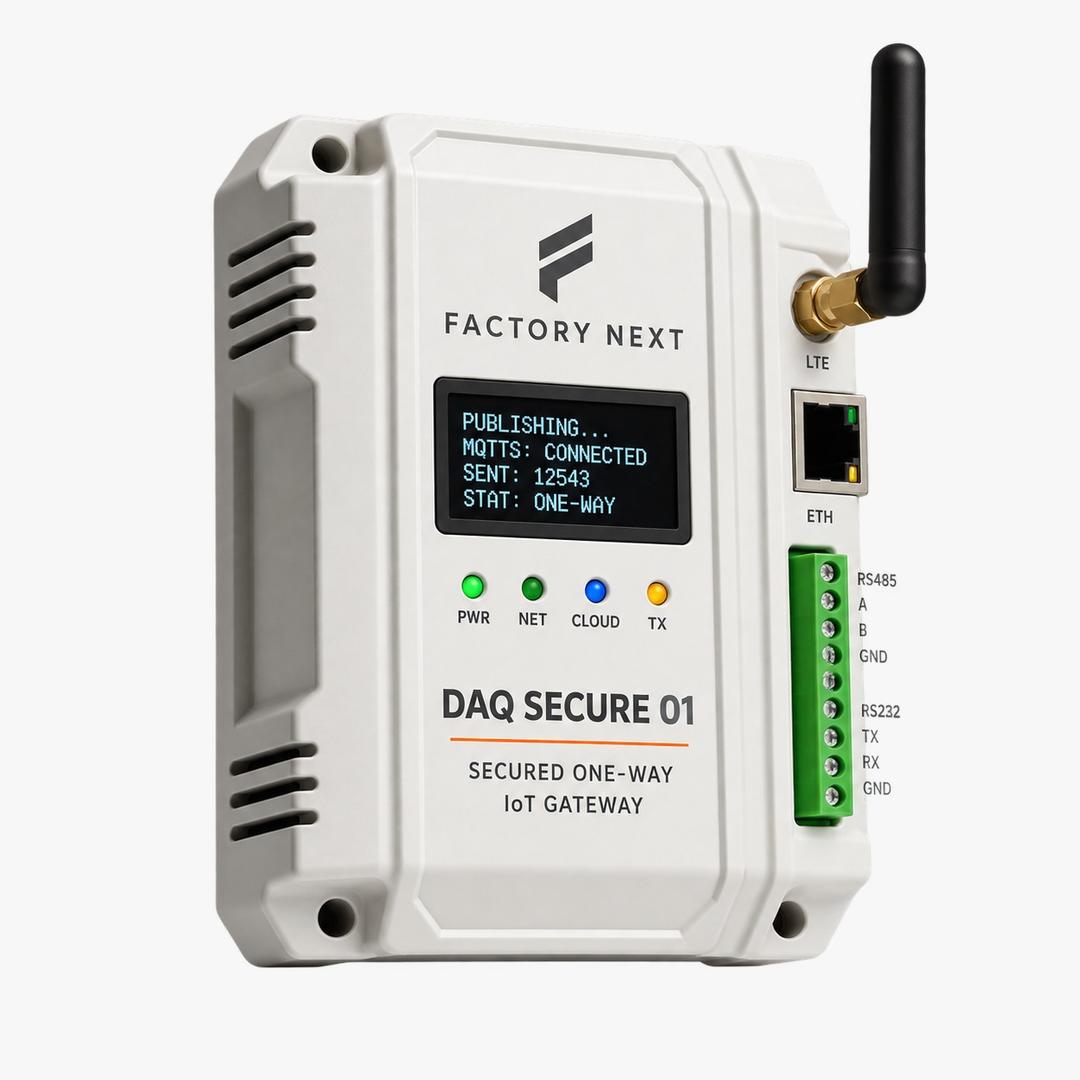

Factory Next’s DAQ Secure 01 is a secured one-way IoT gateway designed for transferring operational data out of protected plant networks to cloud platforms and IT systems. It accepts a serial datastream from PLCs, energy meters, analysers and legacy machines, and publishes it over MQTT with TLS through Wi-Fi, GSM, 4G or Ethernet, with no return path into the control network.

  • 1One-way communication by design, with no inbound path to field devices
  • 2Serial Datastream Input, supports RS232 / RS485 sources
  • 3Configurable Payload: select, rename and scale fields, JSON message format
  • 4Configurable Endpoint: broker host, port, topic and client credentials
  • 5Cloud Upload Protocol: MQTTS (MQTT over TLS) with certificate-based authentication
  • 6Wi-Fi / GSM / 4G / Ethernet-based connectivity
  • 7Keeps OT and IT networks separated, without opening firewall exceptions into the plant
  • 8Ready integration with FN Cloud and NiEO dashboards, or any third-party MQTT platform

Areas of Application

  • Designed for secure data acquisition from power plants, substations, pharmaceutical and regulated manufacturing, ports, and other critical infrastructure. It lets operational data from PLCs, meters, analysers and legacy serial equipment reach cloud dashboards while the control network stays closed to inbound traffic, making it ideal for energy and carbon reporting, remote and unmanned sites, and facilities with strict OT security policies.

Data Acquisition & Control Gateways

Model: DAQ-SECURE-01

Secured One-way IoT Gateway

Factory Next’s Secured One-way IoT Gateway offers secure, one-directional transfer of serial plant data to the cloud over MQTTS, with configurable payload and endpoint and Wi-Fi, GSM, 4G or Ethernet connectivity, making it ideal for critical infrastructure and OT-isolated industrial sites.

Discover how Factory Next can power your smart monitoring solutions. Explore the detailed features and specifications below.

Interested in this product? Contact us for pricing, availability, or a custom quotation tailored to your project.

Quick Highlights

  • ✓One-way communication by design, with no inbound path to field devices
  • ✓Serial Datastream Input, supports RS232 / RS485 sources
  • ✓Configurable Payload: select, rename and scale fields, JSON message format
  • ✓Configurable Endpoint: broker host, port, topic and client credentials
  • ✓Cloud Upload Protocol: MQTTS (MQTT over TLS) with certificate-based authentication
